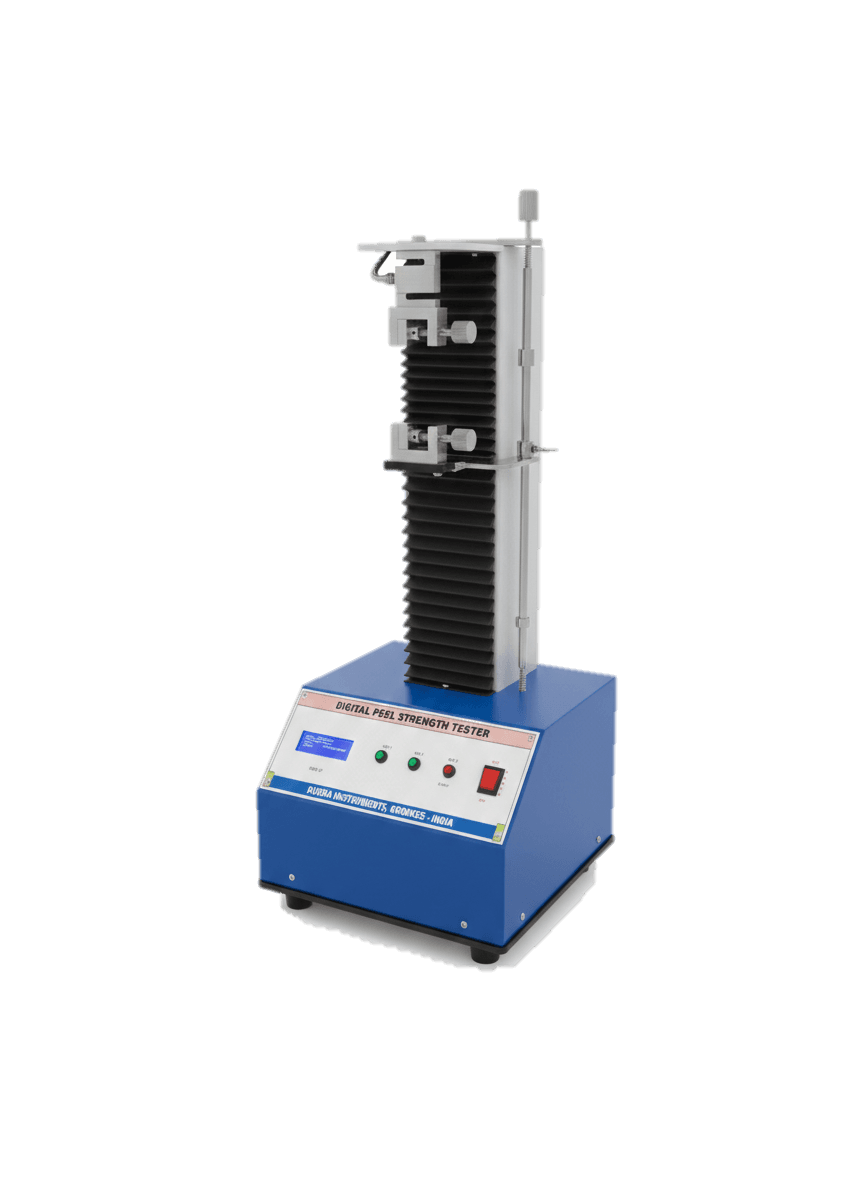

Additional Peel Strength Tester

Precision instrument for measuring peel adhesion strength of laminated materials, tapes, and packaging products.

RI 9050

The Peel Strength Tester is a precision testing instrument used to measure the peel adhesion strength between two bonded materials. It is widely used to test laminated films, pressure sensitive tapes, labels, coatings and packaging materials to ensure proper bonding quality. The Additional Peel Strength Tester variant is available with extended load capacity, customizable grip options, and advanced digital control features to meet specific industrial and laboratory testing requirements.

Technical Specifications

Test TypePeel Strength Test (90° / 180°)

Load Capacity5 kg / 10 kg / 50 kg / higher optional

DisplayDigital

Measurement UnitsN / kgf / gf

OperationMotorized

Power Supply220–240 V AC, 50 Hz

Key Features

› Accurate digital force measurement

› High sensitivity load cell

› Adjustable test speed

› Digital display with peak and average value

› Strong and rigid frame construction

› Easy operation and calibration

› Additional model available with higher load range and custom grips

Applications

• Packaging Industry (laminates & films)

• Adhesive Tape & Label Industry

• Paper & Paperboard Industry

• Plastic & Flexible Packaging

• Quality Control & R&D Laboratories

Working Principle

The test specimen is clamped in the upper and lower grips of the tester. A controlled tensile force is applied at a constant speed to peel one material from another at a specified angle (90° or 180°). The force required to peel the bonded layers is measured by a load cell and displayed digitally.

Advantages

• Ensures bonding quality of laminated products

• Accurate and repeatable test results

• Suitable for routine quality control testing

• Helps reduce product failure

• Long service life with low maintenance

Safety Precautions

• Properly clamp the test specimen before starting

• Do not exceed maximum load capacity

• Keep hands clear of moving grips during testing

• Switch OFF the machine after use

Standards

Designed to comply with ASTM, ISO and TAPPI standards for peel adhesion and bond strength testing.
